2. Bottom Aft Cap Assembly

Find this bag of M3 Threaded Inserts.

We heat set these inserts into or 3D Printed components using a soldering iron.

Place an insert into the hole. Don't try to insert it all the way.

Put the tip of the soldering iron into the insert and as the insert heats up you will be able to gently push it into the hole

Push it in until the insert is flush with the surface.

Install the other 3 inserts on this side of the cap using the same procedure,

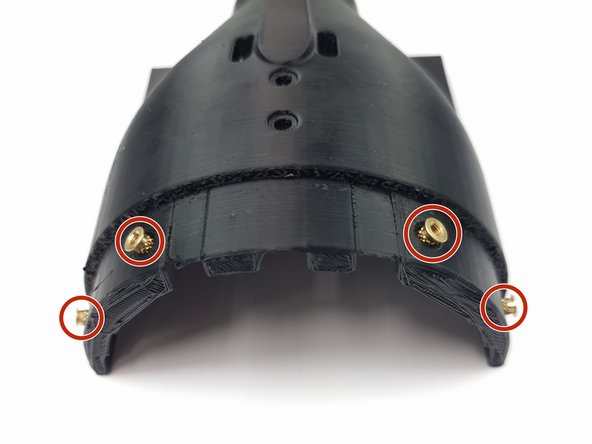

Following the same procedure place the inserts on the bottom of the cap.

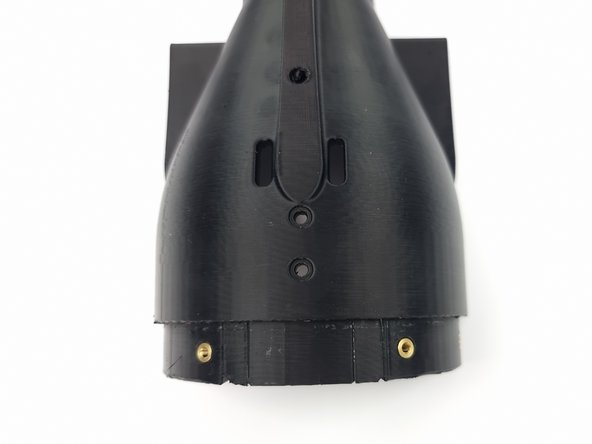

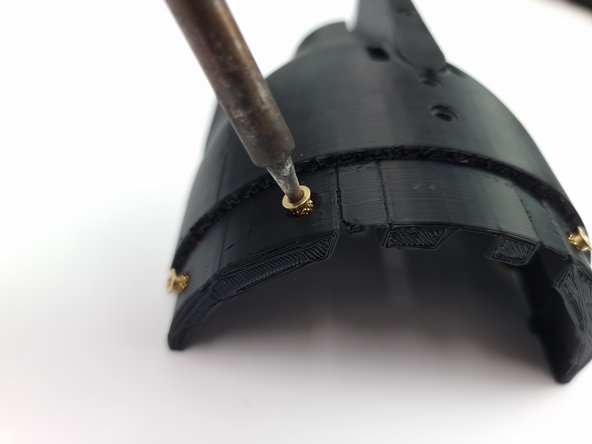

There are 4 inserts to be inserted on the bottom. These are to screw the cap to the bottom hull.

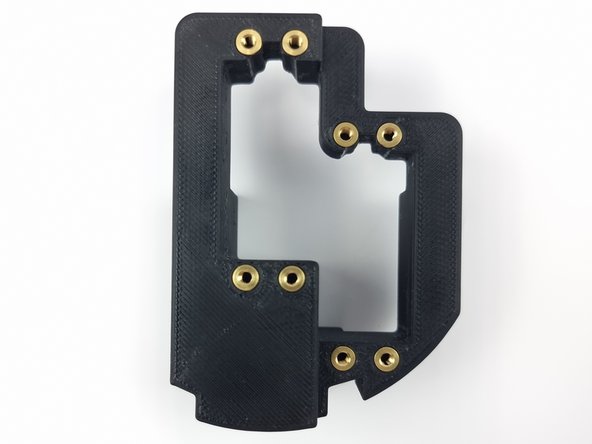

Locate the Aft Servo Mount and install the threaded inserts

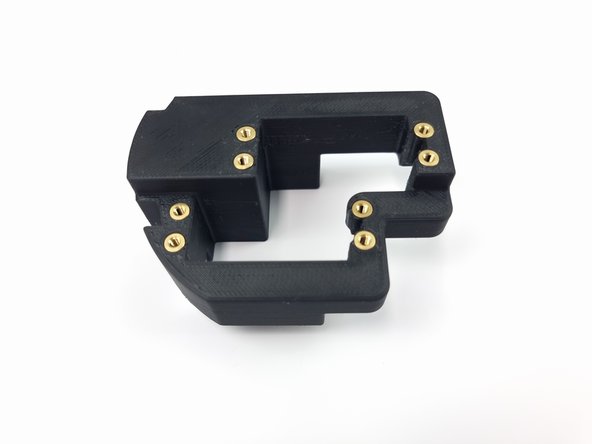

There are 8 inserts on the Front and 2 on the bottom

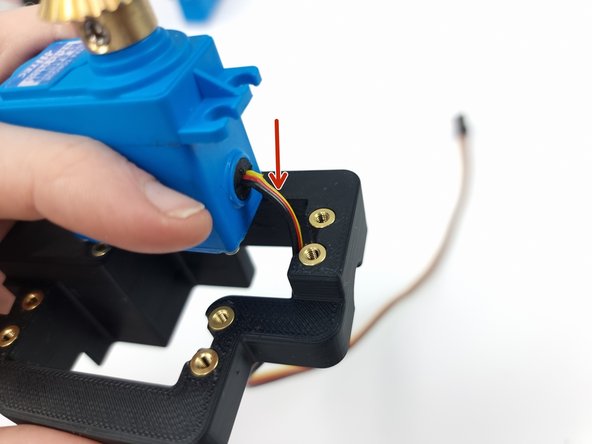

Before Installing the servo's ensure you have waterproofed them using this guide - Waterproof your Servo

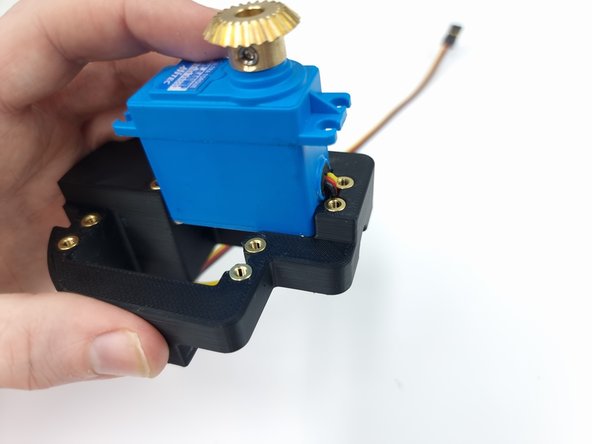

Insert the first servo into the Aft Servo mount, make sure you feed the wire through first.

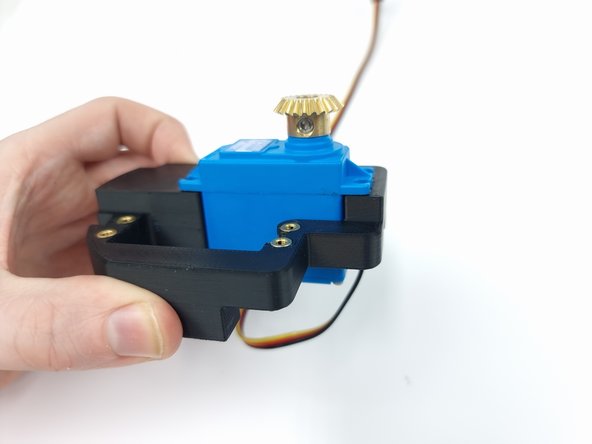

As you push the servo into the mount pull the wire downwards to ensure there is no slack and help it slide the servo into place

Once inserted ensure it is sitting flush all the way around

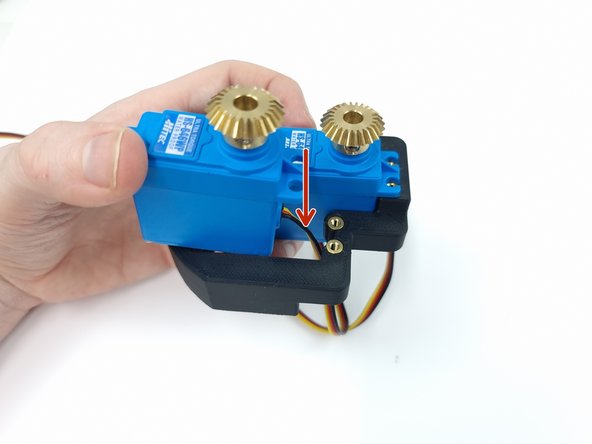

Before Installing the servo's ensure you have waterproofed them using this guide - Waterproof your Servo

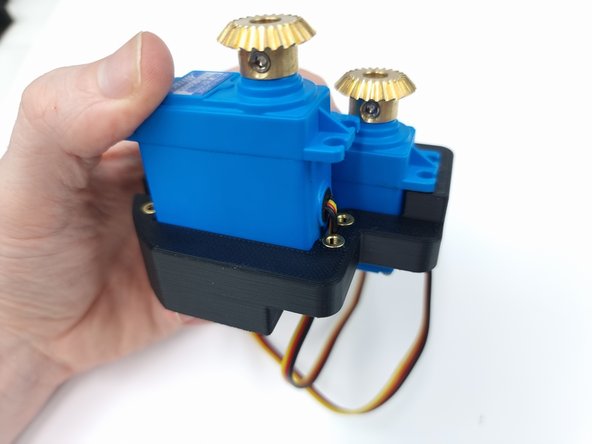

Insert the second servo into the mount again ensuring to feed the wore through first.

Pull the wire as you push the servo down to remove any slack.

Once fully inserted ensure it is sitting flush with the mount

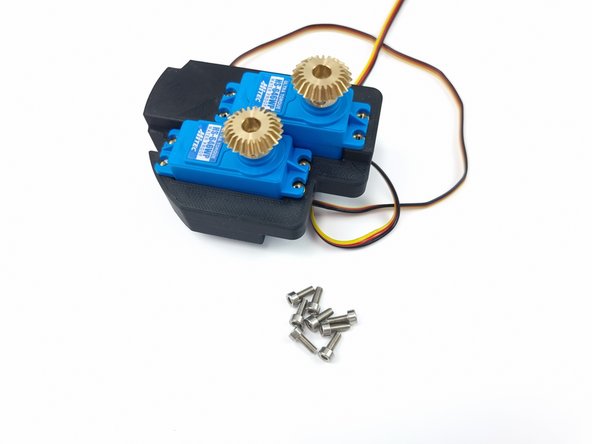

You need 8 x M3 x 8mm Socket Head Cap Screws to secure the servos to the mount

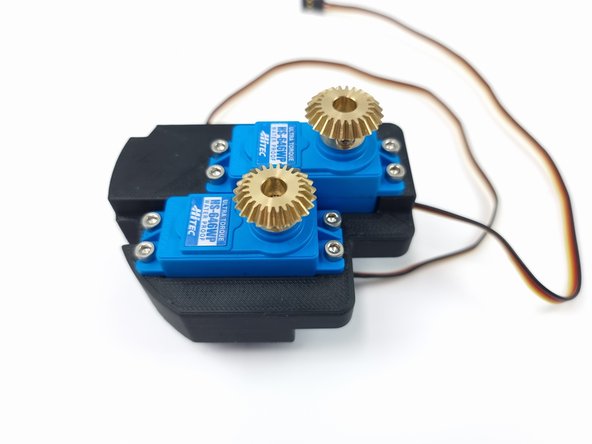

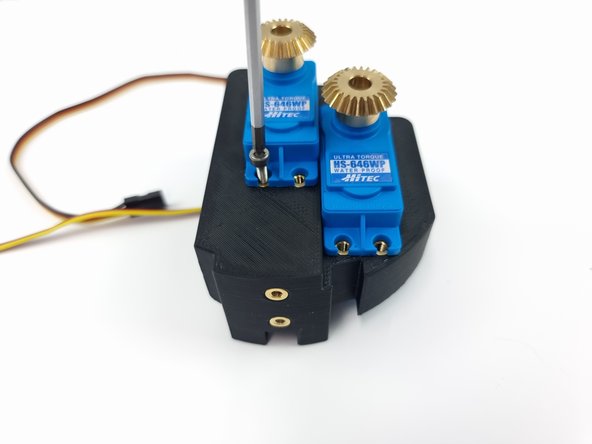

Install the 4 screws for each servo

Place the servo mount into the bottom cap as shown.

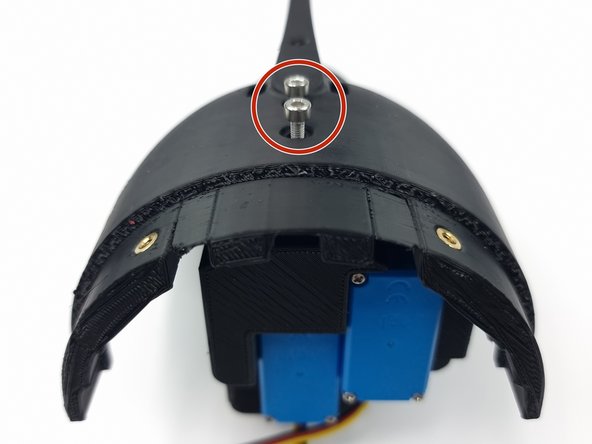

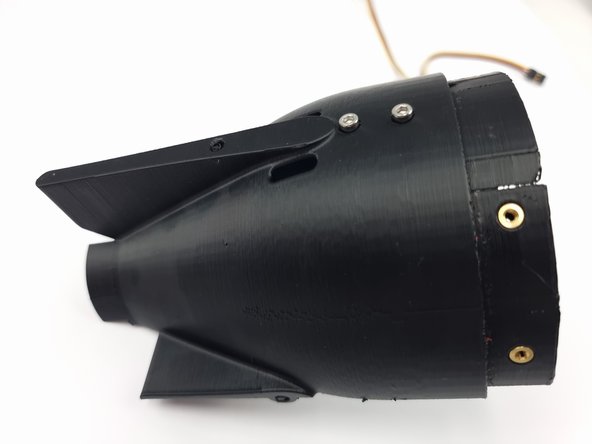

Once in place turn the cap upside down while holding it in place and insert the 2 screws to fix it into place
