4 - Canister Housing

Create a New Sketch on the XY Plane (central face) of the body.

You are ready to sketch the Engine Chamber.

Use the line tool to create a horizontal line, 65mm long from the origin.

Next, add a 13.5mm vertical line from the origin.

Follow this with a 55mm horizontal line from the top of this vertical line.

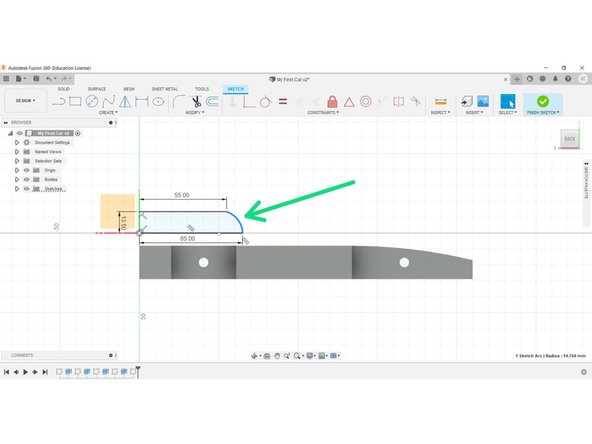

Next, use the 3-point arc tool to finish the geometry.

Note: Achieving a tangential arc is not necessary.

The sketch will turn blue if done correctly.

Click Finish Sketch.

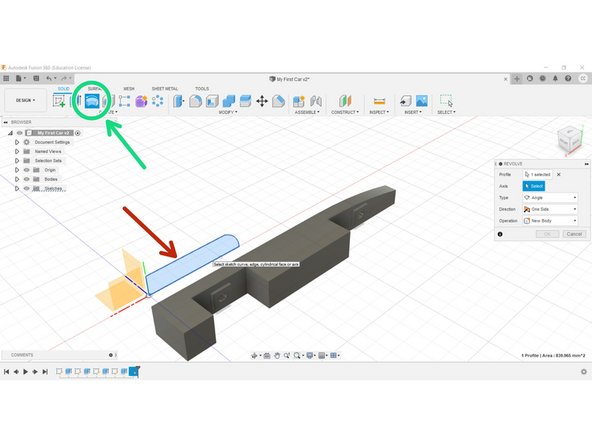

Select the Revolve Tool in the ribbon.

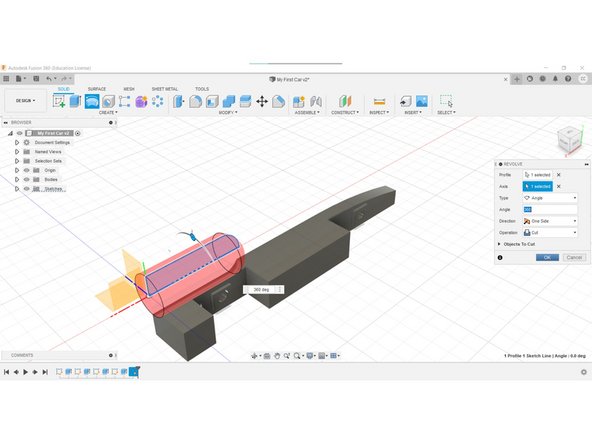

Next, select the sketch profile.

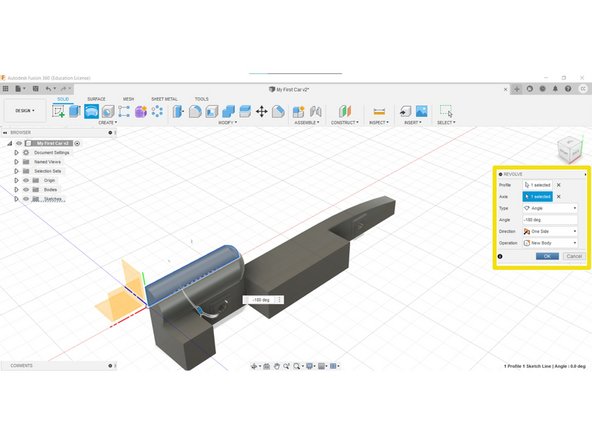

Select the Axis button in the Revolve Tool Panel, and select the bottom edge of your sketch profile.

Set the Revolve Angle to -180 degrees

Set the Operation from Cut to New Body in the Panel.

The Revolve Preview should change from red to grey.

Click OK.

Create a New Sketch on the rear of the Canister Housing.

Place a 19mm circle around the origin.

Click Finish Sketch.

Extrude Cut the circle to a depth of -52mm.

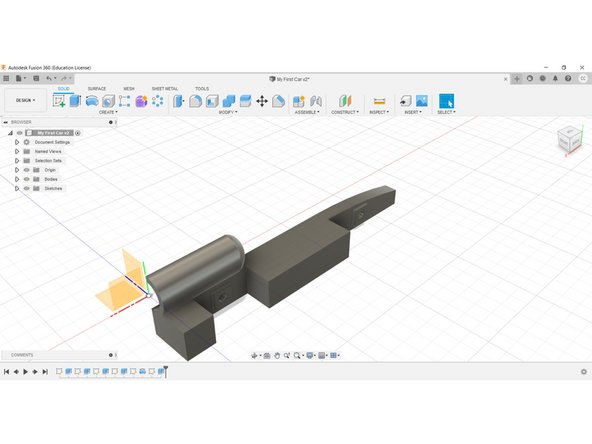

Congratulations, you have finished this section.
